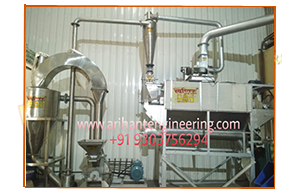

Mini Automatic Besan Plant
Grinding Capacity From 100 to 300 Mess in Grinding Machines.
8 Beater (Hammer ) Fitted in 12 to 25 H. P. Machines & 8, 16, 24, Beater Fitted in big Machines.
Mesh is not required in Impact Pulvarizers with the help of Air Circulation, Automatic Blower helps to collect flow in cyclone Tank.
List of fitting repairing etc. is provided alongwith order of Machine.
30 % deposit amt. should be paid along with the order of machine Within 1 or 2 weeks, time Hundi will be sent through our Bank.
To grind fine Turmeric Powder like flour ( Maida), Besan Plant Machine without Mesh is excellent.
Sagal, Mineral & Furnaces all types, Besan & other products ( Chemicals ) are also Grinded.
Note- Impact pulsing Machine is used to grind Besan, Pappad Atta, Turmeric, Harad, Behada.
Also big machines are used for fine grinding of chemicals, Minerals, Coal, Bauyite, gypsum, Soap, Stone, Calcite Tamarind Seeds, Leather China, Niroo Powder, Dolamite, Powder & all types of Mineral Stones.
The Capacity: Pulvarised like Niroo, lime-stone, Dolamite, Coal, Red Oxide, Bauxite, Gypsum China clay, Soap Tone, Calcite, Chromite, Tamarind Seeds, Ochre, Mica Chips, Besan grain Dal, bestis, Spices.
| Horse Power Required 1440 RPM | Grinding Chamber In Inch | Bitter (Hammer) | RPM of Machine | Capacity Per /hour in KG |
|---|---|---|---|---|
| 5 to 7.5 | 12" | 8 | 2800 | 60-75 |
| 10 to 15 | 16" | 8 | 2300 to 2500 | 140-160 |
| 15 to 20 | 20" | 8 | 2300 to 2500 | 200-250 |
| 25 to 30 | 25" | 8 | 1800 to 2000 | 300-400 |
| 40 to 50 | 32" | 8 | 1800 to 2000 | 600-700 |
| 50 to 60 | 32" Super | 16 | 1800 | 700-900 |
| 80 to 100 | 42" | 16 | 1800 | 1000-1200 |
| 100 to 125 | 42" Super | 16 | 1800 | 1200-1500 |
| 150 to 175 | 52" | 20 | 1800 to 2000 | 1600-1800 |
Product Video.
Centrifugal Machines
We are known for offering a quality- assured range of Centrifugal Machines. These machines are available in several capacities ranging from 1 HP to 10 HP as well as in different grinding chambers. Manufactured quality tested components. These machines are precisely engineered to deliver quality outcomes. We offer these machines in the exact specifications provided by our customers.
Highlights
Available in capacities ranging from 1 HP to 10 HP
Available with different grinding chambers
Precisely engineered
Customised as per the needs and requirements
| Necessary Horse Power | Grinding Chamber in Inches |
|---|---|
| 1 to 2 | 21"x60" |
| 2 to 3 | 24"x72" |
| 5 | 30"x84" |
| 7.5 | 33"x96" |
| 7.5 to 10 | 33"x120" |
| 10 | 36"x144" |
Fully Automatic Besan Plant
It's complete body make in SS 304
We have gained huge expertise in manufacturing, supplying and wholesaling a premium quality range of Automatic Besan Grinding Machine. These machines are manufactured in accordance with the current industrial standards and norms. Our professionals make sure to use the best-in-class material and highly advanced technological equipment to deliver the best quality-approved outcomes at the clients' end.
Our products are known for the following attributes
Robust construction.
Long functional life.
Resistance to corrosion.
Resistance to wear.
