Semi Automatic Spices Machine
Automatic Spices / Sugar / Chemical / Salt / Minerals Graders
Speciality of Swastik Raw spices Pulverizer Machine.
Machine runs without Fundation since matar is attached to machine, also runs with counter shaft. Grinding of spices in pulverizer machine, spices do not change colour & heat up.
Excellent for grinding raw turmeric, red chilly, coriander seeds, aamchur & spices etc. Ayurvedic Herbs, medicines, mehendi, kattha, gran husk, grourndnut husk, Dal husk, catlle feed, seeds of Aratian free ( Batool ) for poultry, cron, poultry feed, fish, soyalean husk etc.
Spice grinder machine can be attached to flour mill natar to grind spices, & need not attach separate motor drum pulley is to be attached eioth motor ehich is available with us.
Heavy main mesh & 5 other types of mesh with Frame are provided with each machine. Also catlon box, branch, two beater guage is provided with one beater water. Steel cyclenc (gang) with pipe folding is given with machine whichis confartable for clianing & fitting.
Afersaid machines run on 1440, 2800, 960 RPM electric motors & all types of oil engences 3600 RPM is necessary for machines.
Complete machine is manufactured with M.S. Heavy plates. High quality bearying, Japan made pillao block & air type bearing fitted which is long lasting.
Sugar for sweef-meet shop & biscuit industry can be grinded one time like maida in this machine.
| Necessary Horse Power 1440 RPM | GrindingChamber in Inches | Capicity of Hand Pounded spices Per Hr. |
|---|---|---|
| 1 To 2 | 4x10 | 40 to 50 KG |
| 2 to 3 | 5x11 | 60 to 75 KG |
| 5 to 7.5 | 6x12 | 125 to 150 KG |
| 7.5 to 10 | 7x13 | 200 to 250 KG |
| 10 to 12.5 | 8x14 | 250 to 300 KG |
| 12 to 15 | 9x15 | 300 to 400 KG |
| 15 to 20 | 10x16 | 400 to 500 KG |
| 20 to 25 | 12x16 | 500 to 600 KG |
| 25 to 30 | 16x20 | 600 to 850 KG |
| 40 to 50 | 18x24 | 850 to 1100 KG |
| 50 to 60 | 20x30 | 1100 to 1500 KG |
| 60 to 70 | 24x24 | 1600 to 2000 KG |
| 70 to 80 | 24x30 | 2000 to 2500 KG |
| 80 to 90 | 28x36 | 2500 to 3000 KG |
| 90 to 100 | 30x40 | 3000 to 3500 KG |

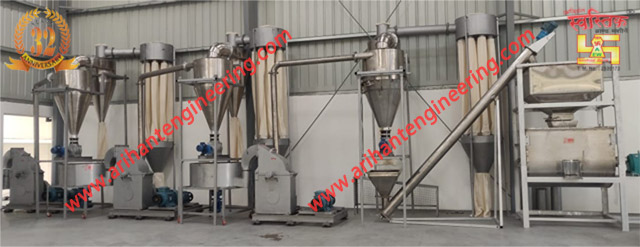

Chilly Plants
Swastik Automatic Chilly plant with cleaning system. We have provider also include 3 stage grinding plant then polishing and separating system. This plant is continuous unit
Specification of Chilly Plant.
Chilly cleaning M/C - Remove Dust, Nail, Stones & Hard Particals from Chilly
Then throw in first grinding machine suction blowers sucks those in first grinding machine and throw the chilly in second grinding then same process go to third grinding machine here you get final Product.
Complete cleaning on 3 stage grinding then you have chilly If Mixer is attached to the plant Final Product store in to the hopper and then in to the Mixer (Oil Mixing Tap is provided)and cooling of the powder also takes place before bagging mixer
It is an continuous process of grinding and only two to three min required while running plants
Plants available in Capacity (Moisture continent should be 10% ) 200 to 300 kg/hr 400 to 500 kg/hr 900 to 1000 kg/hr

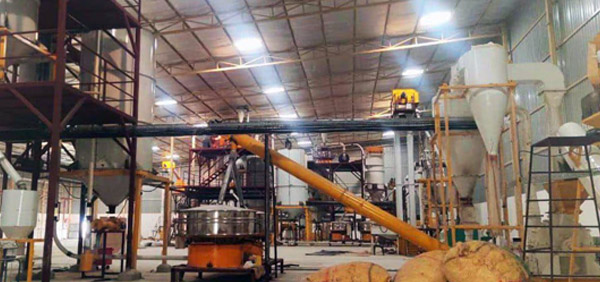

Automatic Spice Chilli Plant

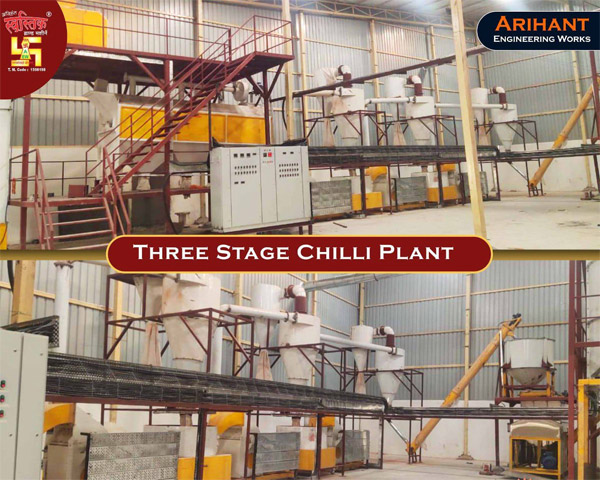

Two / Three Stage Chilli Plant

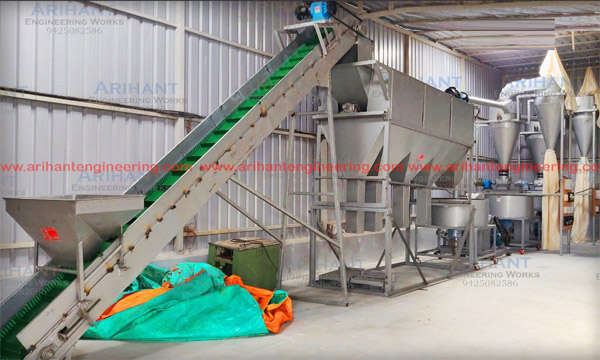

Two Stage Chilli Plant

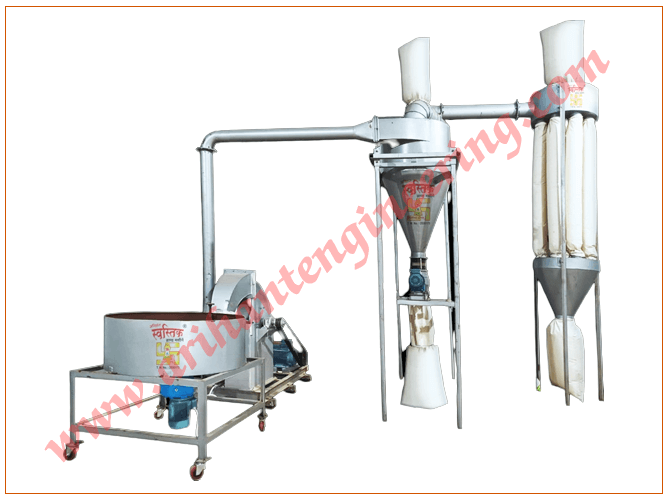

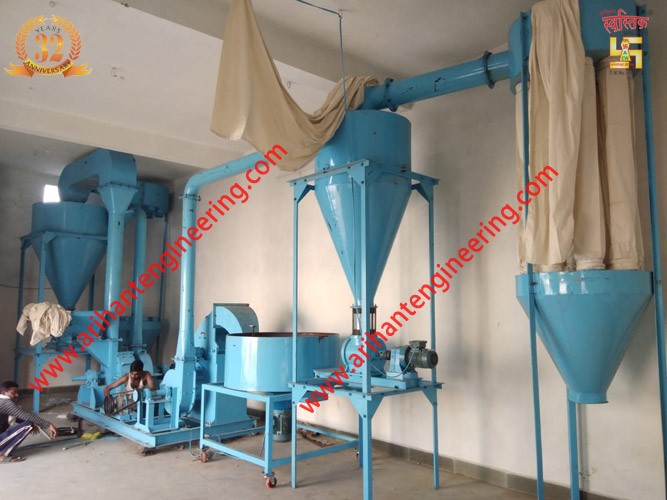

Automatic Suction Pulverize Machines
Specialitie of Swastik Automatic Suction Pulverizer Machines.
Man power is not required in automatic Suction Machine
The size of cyclone Body Tank is bigger in Automatic Suction Machine. It is easy to Work & collect Powdered spices without air pressure, due to dust collector.
Due to continuity flow through, Automatic Suction, motor keeps working & ampere of motor does not fluctuate, hence increase working capacity of machine.
Through suction machine, Coriander, husk of ground nut, rice bran, seeds of aratic trec (Batool) soyabean is Sucked automatically.
Due to availability of beater carbides in Automatic machines, not necessary to change Beater frequently, & it dose not effect the production.
Impact Pulvariser is excellent for easy grinding of rough or fine Besan, Turmeric & Aamchur powder without mesh.
Hand pounded spices are sieved from big plate, capacity of spices powder quantity is more in big mesh & less in small mesh.
Impact pulverizer & pulverizer with mesh, both work on one motor.
The Cost of Dust collector in Automatic suction Machine is to be paid separately which is 20% of the machine.
Note:- The capacity & mesh approximate only & depends upon the nature of the materials to be pulvarized.
| Necessary Horse Power 1440 RPM |
Automatic Blower Hp 2900 RPM |
Automatic Rotary Tank Hp 900RPM to 1440 RPM |
Grinding Chamber in Inches |
Capacity of Hand Pounded spices Per Hr. |
|---|---|---|---|---|
| 5 to 7.5 | 2 | 1 | 6x12 | 375 KG |
| 7.5 to 10 | 3 | 1.5 | 7x13 | 425 KG |
| 10 to 12.5 | 3 | 2 | 8x14 | 500 KG |
| 12.5 to 15 | 5 | 2 to 3 | 9x15 | 700 KG |
| 15 to 20 | 5 | 3 | 10x16 | 1000 KG |
| 20 to 25 | 5 | 3 | 12x16 | 1300 KG |
| 25 to 30 30 to 40 |
5 7.5 |
3 | 16x20 | 1800 KG |
| 40 to 50 | 7.5 | 3 | 18x24 | 2000 KG |
| 50 to 60 | 10 | 5 | 20x30 | 2300 KG |
| 60 to 70 | 10Â | 5 | 24x24 | 3000 KG |
| 70 to 80 | 10 | 5 | 30x24 | 3500 KG |
Single Motor Operating Turmeric & Chilly Grinding Mahines

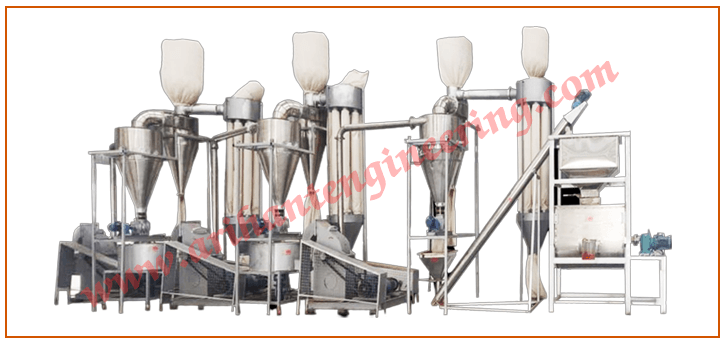

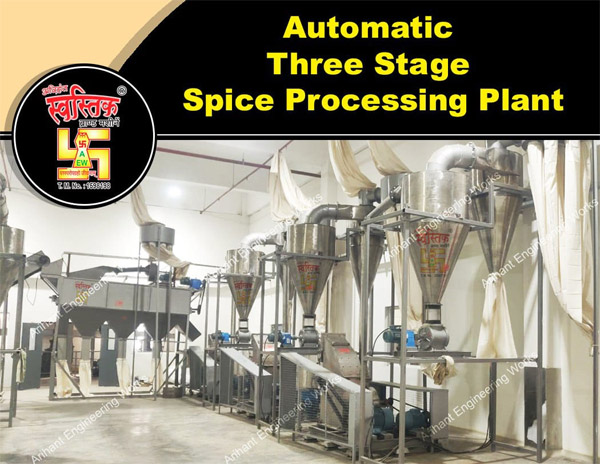

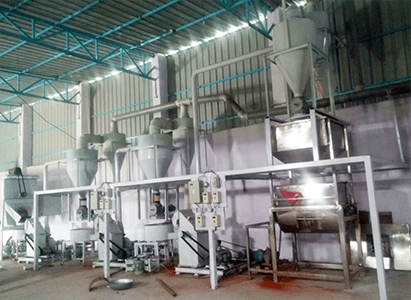

Automatic Three Stage Chilli Grinder Machines
Single Motor Operating Turmeric & Coriander Grinding Machines

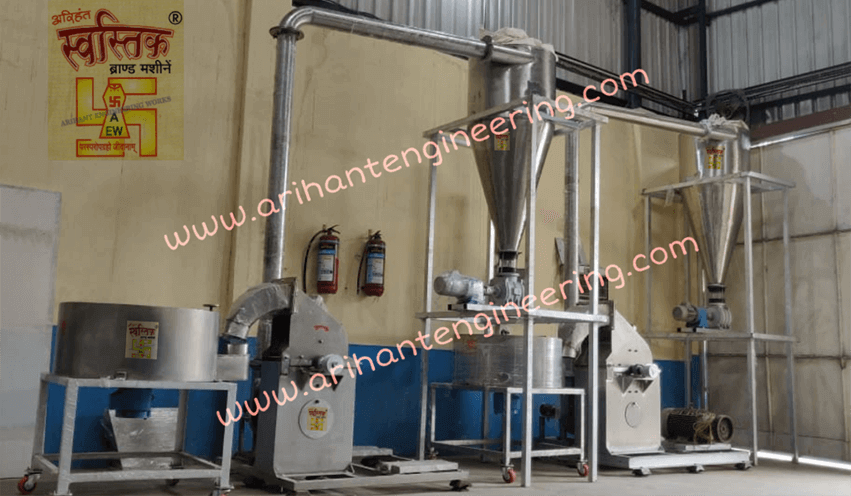

Two Stage SS 304 Chilli Grinder / Coriander Grinder Machines

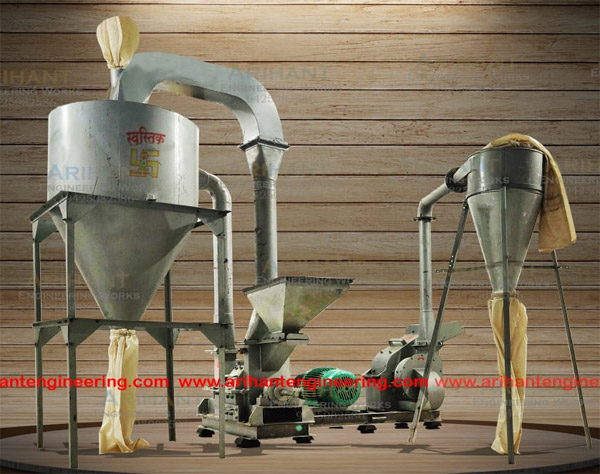

Single motor operating turmeric and coriander grinder

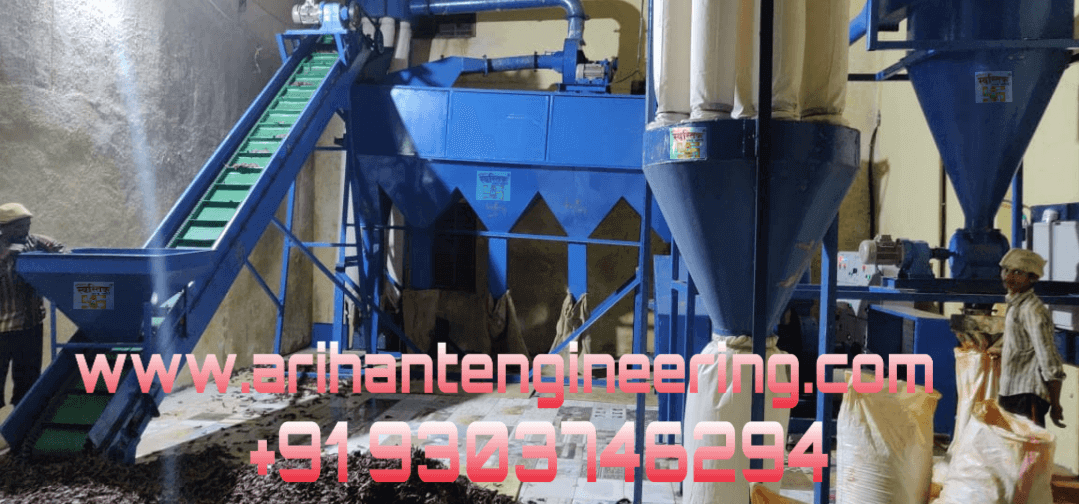

Automatic Single Stage Chilli Grinder Machine with cleaning plant and belt conveyor machine
Product Video.
